Chief Products WK2 Lower Front Guard is an innovative new product engineered to protect the critical components at the lower front of your WK2. Weighing only 15kg (approx.) when fully installed, it provides off-road protection for the Lower Radiator Core, ACC Camera, Windshield Washer Bottle and Air Suspension Controller. Best of all, they've designed the WK2 Lower Front Guard so it installs behind the OEM lower front fascia, providing full protection off-road while still allowing you to maintain a factory appearance on-road.
Chief Products spent more than 1 year in development getting every detail just right. They performed months of on-road and off-road testing, putting the WK2 Lower Front Guard through numerous challenges, as well as nearly a dozen test fits on various WK2 models. That passionate attention-to-detail led to numerous refinements that increased ease-of-installation, lowered weight, maximised performance and increased strength. They even designed the WK2 Lower Front Guard to be as economical to ship as possible, which significantly reduces associated shipping costs as well as the environmental impact.
FEATURES:
- High Strength 350 Grade Steel
- Zincshield® 2 Undercoat (Excellent Corrosion Resistance)
- Durable Powder Coat Finish (Satin Black)
- Drainage Slots
- Airflow Slots
- Easy Installation (Difficulty = 4/10)
SPECIFICATIONS:
- Export (Australia) + Standard - 15.50kg (Including Mounting Hardware)
- Export (Australia) + ACC Camera Guard - 15.85kg (Including Mounting Hardware)
INCLUDES:

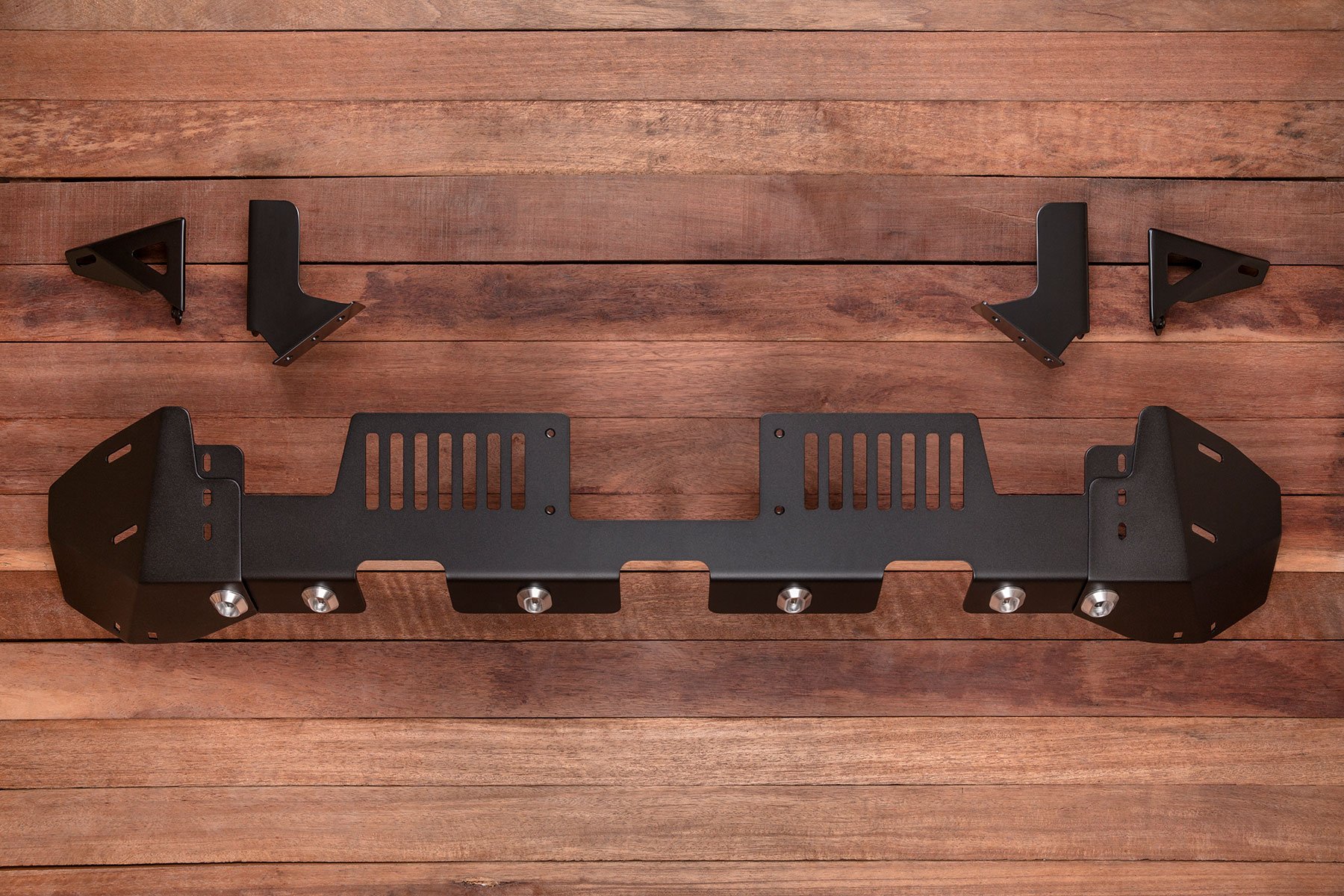

- 1 - Centre Section (5mm High Strength Steel)
- 2 - Chassis Mounting Brackets
- 2 - Corner Mounting Brackets
- 2 - Corner Guards
- 1 - Centre Guard or ACC Camera Guard
- 1 - Air Dam Reinforcement Bracket
- 3 - M6 x 38mm Chief Products Bolt Head Protectors (304 Stainless Steel)
- 2 - M8 x 38mm Chief Products Bolt Head Protectors (304 Stainless Steel)
- 4 - M10 x 20mm High Tensile (10.9) Bolts (Zinc Plated)
- 2 - M8 x 100mm High Tensile (10.9) Bolts (Zinc Plated)
- 2 - M8 x 30mm High Tensile (8.8) Bolts (Zinc Plated)
- 14 - M8 x 25mm High Tensile (8.8) Bolts (Black Zinc Plated)
- 3 - M6 x 40mm High Tensile (10.9) Bolts (Zinc Plated)
- 4 - M10 Nord-Lock® Extended Washers (Delta Protekt® - Zinc Flake Coating)
- 18 - M8 Nord-Lock® Extended Washers (Delta Protekt® - Zinc Flake Coating)
- 3 - M6 Nord-Lock® Extended Washers (Delta Protekt® - Zinc Flake Coating)
- 2 - M8 Nord-Lock® X-Series Washers (Delta Protekt® - Zinc Flake Coating)
- 3 - M6 Nord-Lock® X-Series Washers (Delta Protekt® - Zinc Flake Coating)
- 2 - M8 x 8mm Bushings (6061 Aluminium)
- 3 - M8 x 5mm Bushings (6061 Aluminium)
- 1 - 4g pouch Anti-Seize
Bolts into existing mounting points in the frame, no drilling or cutting needed.
WK2 Lower Front Guard fits the following vehicles:
2011 Jeep Grand Cherokee - Laredo, Limited & Overland (USA & Export Models)
2012 Jeep Grand Cherokee - Laredo, Limited & Overland (USA & Export Models)
2013 Jeep Grand Cherokee - Laredo, Limited, Overland & Trailhawk (USA & Export Models)
2014 Jeep Grand Cherokee - Laredo, Limited & Overland (USA & Export Models)
2015 Jeep Grand Cherokee - Laredo, Limited & Overland (USA & Export Models)
2016 Jeep Grand Cherokee - Laredo, Limited & Overland (USA & Export Models)
Fitment confirmed with the following products:
WK2 Recovery Point(s)
WK2 Recovery Hook(s)
WK2 Sump Protection Plate
WK2 Nudge Bar
Uneek WK2 Grand Cherokee Bash Plate
Rocky Road Bumpers + Winch Mounting Kits (MY11 & MY12 WK2s)
OEM Tow Hooks (part# 82212095)
Does NOT fit with the following products:
Jeep Australia Tow Hook (part# CH8220WKRH)
Download Fitting instructions here
