Chief Products WK2 Hidden Winch Mount provides a high-strength place to mount your winch without ruining your Jeep's good looks.
Chief Products have engineered a winch mounting system that can remain completely hidden while still being 100% compatible with the all of your Jeep's safety systems, (adaptive cruise control, forward collision warning, parking sensor systems, etc.). It delivers numerous industry leading features - including an engineer certified 10,000lb max rating, E-Coat Corrosion Protection and a very low 12.85kg install weight.
By positioning the winch between the chassis structure (lower than our competitors) we're able to provide significantly improved cooling, better off-axis strength, as well as more space for larger winches. Best of all, we spent (12) months performing rigorous real world testing to ensure you can rely on our winch mounting system when you need it most.
FEATURES
High-Strength 350 Grade Steel
E-Coat (Industry Leading Corrosion Protection)
Durable Powder Coat Finish (Satin Black)
Drainage Slots
Easy Installation (Difficulty = 4/10)
SPECIFICATIONS
10,000lbs Max Rating [Engineer Certified]
Fully Installed Weight = 12.85kg (approximate without winch)
Approach Angle = Same As Stock

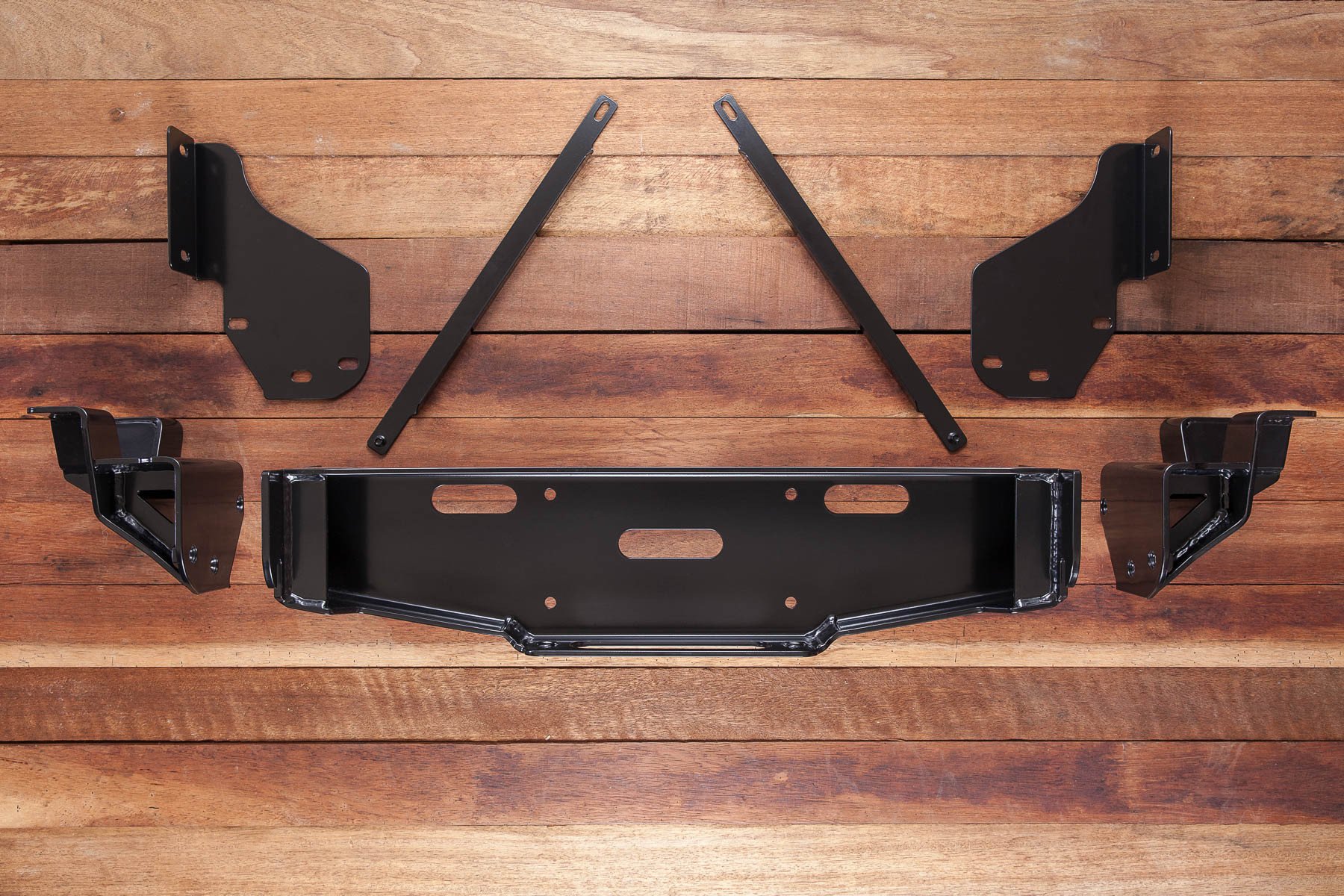

INCLUDES
1 - Winch Cradle
2 - Cradle-Frame Mounts
2 - Chassis Support Brackets
2 - Chassis Mounting Plates
2 - Bonnet Supports
6 - M12 x 35mm High Tensile (10.9) Bolts (Zinc Plated)
4 - M10 x 40mm High Tensile (10.9) Bolts (Zinc Plated)
4 - M8 x 100mm (10.9) Bolts (Zinc Plated)
4 - M8 x 25mm (10.9) Bolts (Zinc Plated)
2 - M6 x 25mm (10.9) Bolts (Zinc Plated)
2 - M6 x 216mm (10.9) Bolts (Zinc Plated)
6 - M12 Wedge-Lock Extended Washers (Zinc Flake Coating)
4 - M10 Wedge-Lock Extended Washers (Zinc Flake Coating)
8 - M8 Wedge-Lock Extended Washers (Zinc Flake Coating)
4 - M6 Wedge-Lock Extended Washers (Zinc Flake Coating)
1 - 4g pouch Anti-Seize
