Chief Products WK2 Grand Cherokee Nudge Bar was engineered to provide a great looking bar with clean simple lines and all of the important features others leave out.
Through careful engineering and testing, Chief Products have created a nudge bar that is compatible with parking sensors, accommodates numerous lighting options, is extremely easy to install, and is made from 304 Stainless Steel, (which provides excellent resistance to corrosion and scratches).
Best of all, the mounting system is designed to be incredibly strong so there are minimal vibrations for your accessories when you're off-road.
FEATURES:
- 304 Stainless Steel (Excellent Corrosion & Scratch Resistance)
- Bar Assembly - Mirror Polished or Durable Powder Coat Finish (Gloss Black)
- Mounting Plates - Durable Powder Coat Finish (Gloss Black)
- Easy Installation (Difficulty = 2/10)
SPECIFICATIONS:
- Fully Installed Weight = 13.4kg (Including Mounting Hardware)
- Bar Diameter = 63.5mm
- Brinell Hardness = 123
- Approach Angle = 29.4° (lower front fascia removed + standard suspension)
- Approach Angle = 33.3° (lower front fascia removed + air suspension OR2)
- Approach Angle = Same As Stock (lower front fascia installed)

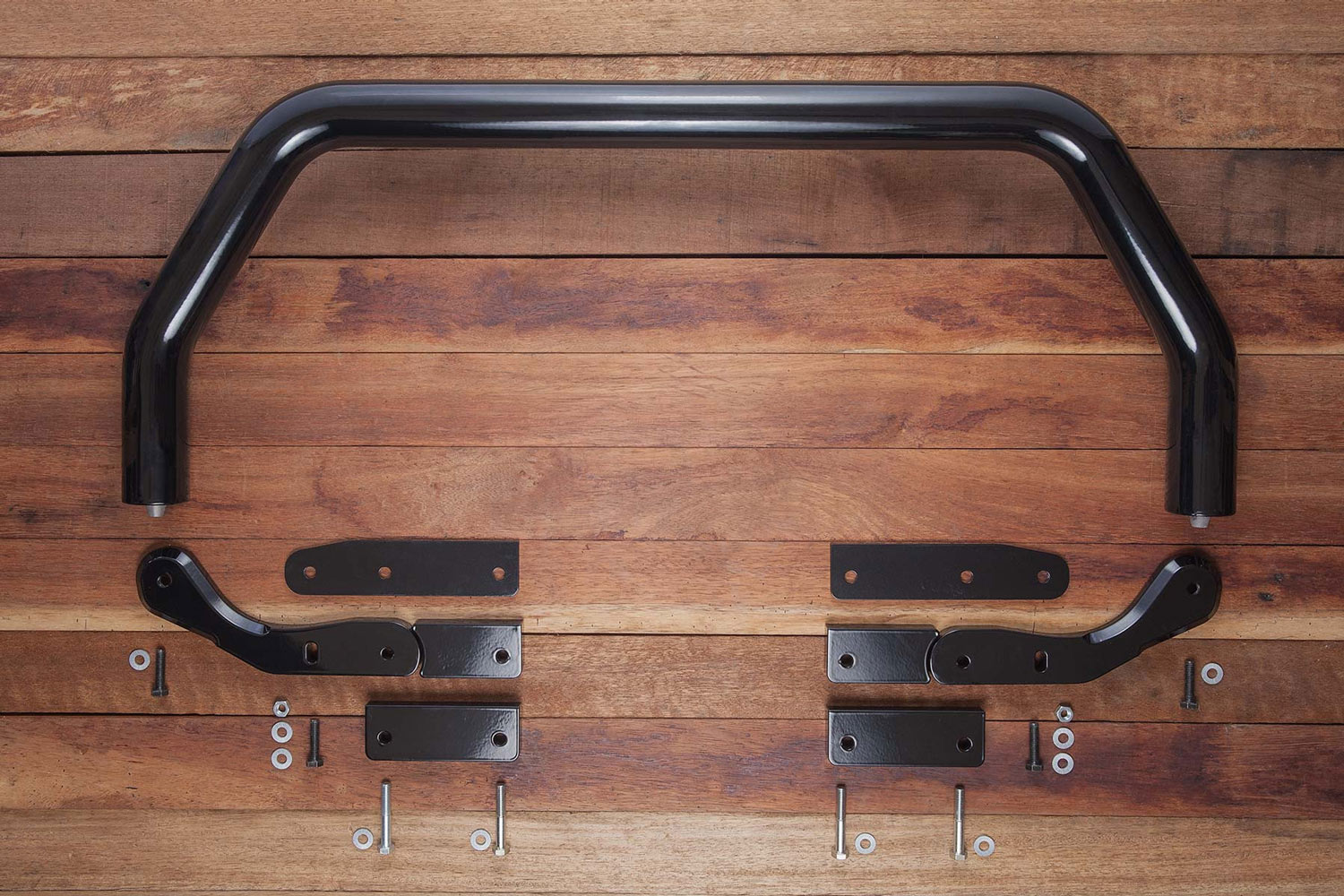

INCLUDES:
- 1 - Bar Assembly (304 Stainless Steel)
- 2 - Chassis Mounting Brackets
- 4 - Chassis Mounting Plates
- 2 - M10 x 40mm High Tensile (10.9) Bolts (Black Zinc Plated)
- 2 - M10 x 40mm High Tensile (10.9) Bolts (Zinc Plated)
- 4 - M10 x 65mm High Tensile (10.9) Bolts (Zinc Plated)
- 2 - M10 Nuts (Zinc Plated)
- 10 - M10 Nord-Lock® Extended Washers (Delta Protekt® - Zinc Flake Coating)
- 1 - 4g pouch Anti-Seize
Parking Sensor Compatibility
Through careful engineering & testing we've delivered a nudge bar that is compatible with parking sensors on most WK2 models.
Excellent Approach Angle
Since our design doesn't extend below the mounting brackets, the approach angle (an important aspect off-road) is significantly better than other nudge bars.
High Strength
Our innovative mounting system uses tapered steel tabs to lock the bar securely to 20mm high-strength steel mounting brackets like a lug nut locks a wheel to a car. This high-strength design means there will be minimal vibrations for your accessories when you're off-road.
Highly Scratch Resistant
By using 304 Stainless Steel (which has a higher hardness rating than Aluminium) we're able to provide a nudge bar with much better scratch & wear resistance.
Low Installed Weight
Only 13.4kg when fully installed. This is extremely light when compared to a Bull Bar which often weighs 40kgs (alloy) - 80kgs (steel).
Accommodates Numerous Lighting & Accessory Options
The accessory mounting tab is slotted across it's entire length, allowing you to install lights or accessories however you choose.
Contoured To Fit
The accessory mounting tab is contoured to match the curvature of the WK2 grille, so it integrates perfectly with the front of the WK2.
Compatible With Front Recovery Points
Can be installed with Chief Products WK2 Recovery Hooks & WK2 Recovery Points, (which can be installed on driver & passenger sides and are engineer rated to 4,500kg [1.5 GVM]). Due to mounting restrictions, many nudge bars don't allow you to install any front recovery points with their bar.
Compatible With Adaptive Cruise Control
Through careful engineering & testing we've delivered a nudge bar that is compatible with the adaptive cruise control system on all WK2 models.
Guards Against Damage During Recovery
The mounting brackets are designed to stop recovery straps or bow shackles from hitting the bar during an off-road recovery.
Easy To Install
We provide easy-to-follow step-by-step instructions. If you're half-way decent with a wrench you can easily install this yourself. We've even designed the mounting brackets so they swivel slightly during installation to make things as easy as possible.
Mirror Polish That Lasts
Our mirror polished 304 Stainless Steel keeps looking good for longer. Polished aluminium bars tend to develop a white haze from oxidation that causes them to lose their lustre.
Top Quality Finishing Touches
We include all the details that matter. Heavy Duty Powder Coating on all mounting plates. High tensile bolts for maximum strength. Nord-Lock® washers to create bolted joints that are extremely resistant to loosening. Anti-Seize for bolted joints that are resistant to seizing. A Chief Products Shop Rag for all the dirty jobs around the garage. All packaged with extreme care to arrive safely and looking great.
Bolts into existing mounting points in the frame, no drilling or cutting needed.
WK2 Nudge Bar fits the following vehicles:
2011 Jeep Grand Cherokee - Laredo, Limited & Overland (USA & Export Models)
2012 Jeep Grand Cherokee - Laredo, Limited & Overland (USA & Export Models)
2013 Jeep Grand Cherokee - Laredo, Limited, Overland & Trailhawk (USA & Export Models)
2014 Jeep Grand Cherokee - Laredo, Limited, Overland & Summit (USA & Export Models)
2015 Jeep Grand Cherokee - Laredo, Limited, Overland & Summit (USA & Export Models)
2016 Jeep Grand Cherokee - Laredo, Limited, Overland & Summit (USA & Export Models)
* Fitment on Summit requires cutting (2) holes in the grille area of the lower front fascia for the mounting brackets. Instructions are not currently provided for this modification.
Fitment confirmed with the following products:
WK2 Recovery Point(s)
WK2 Recovery Hook(s)
WK2 Sump Protection Plate
WK2 Lower Front Guard
Does NOT fit with the following products:
OEM Tow Hooks (part# 82212095)
Jeep Australia Tow Hook (part# CH8220WKRH)
